Imashini irwanya imashini
Kumenyekanisha ibicuruzwa

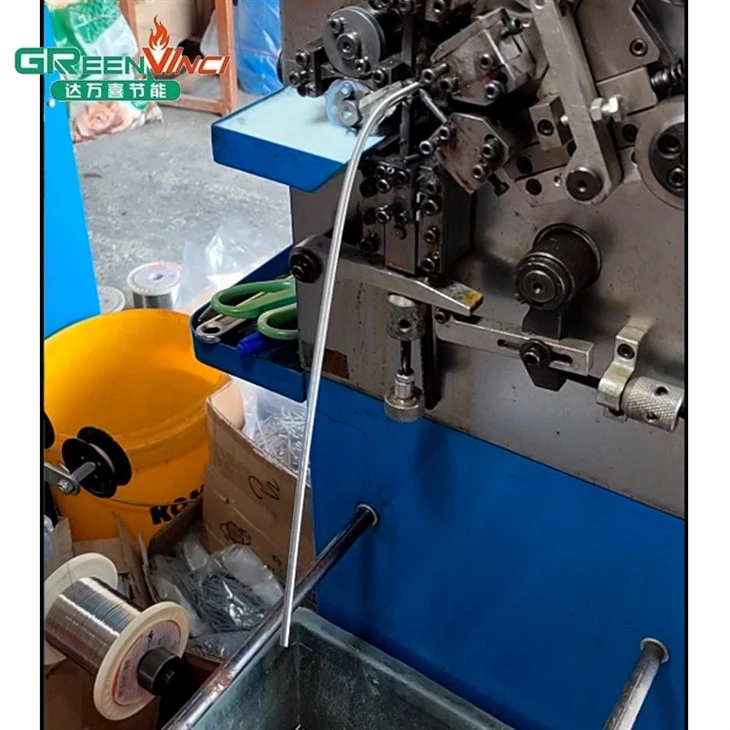

Imashini irwanya insinga irwanya imashini nigikoresho cyikora gihinduranya insinga zirwanya muburyo bwa spiral kugirango ikore ibintu bishyushya. Iyi mashini irashobora gutegurwa kugirango ihite ikata insinga nyuma yo kugera kuburwanya runaka cyangwa uburebure.
Irakwiriye gutunganya insinga zishyushya zikoreshwa mubikoresho bito byo murugo hamwe nigituba gishyushya inganda, nkibiboneka mu ndobo, abateka umuceri, ibyuma bya karitsiye, hamwe nubushyuhe bwo kwiruka.
Ibikoresho bya tekiniki
|
Amashanyarazi |
Simplex 220V \\ 50Hz \\ 0,6kW |
|
Isoko ryo mu kirere |
0.5 ~ 0.7MPa |
|
Ubwoko bwo Gukata |
Amashanyarazi abiri |
|
Irashobora gukoreshwa kuri Winding Imbere Diameter |
Φ1.0mm ~ Φ6.0mm (kora na mandril) |
|
Irashobora gukoreshwa kuri Resistance Wire Diameter |
Φ0.1mm ~ Φ1mm |
|
Moteri nkuru ya Axis |
370W (Guhindura inshuro) |
|
Ikiziga |
90W (Umuvuduko ushobora guhinduka) |
|
Igipimo |
750x600x1650mm |
|
Ibiro |
175 kg |
|
Guhinduranya neza ni 2% (bikwiranye n'umuvuduko wa spindle ya 800-1000 rpm, kandi kurwanya insinga zishyushya birasabwa kuba byuzuye; bitabaye ibyo, ukuri kuzagira ingaruka. |
|
Ibicuruzwa bisobanura
1. Ubwubatsi Bwuzuye:
Imashini irwanya insinga ya coil ikoresha imashini ikora neza. Bifite ibikoresho byo gukoraho kandi birebire - kodegisi yihuta nkibintu bigenzura, igenzura neza ukurwanya mugihe cyizunguruka.
2. Igikorwa cyikora:
Shiraho gusa ibyifuzo birwanya hamwe nibisobanuro bifitanye isano kuri ecran ya ecran, hanyuma imashini ihita ihinduranya insinga. Iyo igenamigambi ryateganijwe cyangwa uburebure bumaze kugerwaho, ihita ikata insinga hanyuma igasubiramo, ikemerera gukora ubudahwema.
3. Imikorere myinshi:
Imashini irashobora kwakira diameter zitandukanye, kuva 0.1mm kugeza 1mm, kugera kubintu byinshi kandi bikora neza.
4. Ubwishingizi bufite ireme:
Ibikoresho bihita bihagarara mugihe habuze insinga, gucika insinga, cyangwa mugihe umusaruro wateganijwe wageze.
5. Umukoresha {{1} Inter Imigaragarire ya gicuti:
Imashini ifite ibikoresho byumukoresha - interineti ya gicuti ya PLC, ituma abayikora bashobora gukurikirana byoroshye no kugenzura inzira. Ibi byoroshya imikorere kandi bigufasha guhinduka byihuse nkuko bikenewe.
Gutunganya ibicuruzwa
Imashini irwanya insinga coil imashini iroroshye gukora; kurikiza gusa intambwe zikurikira.
1. Kwinjiza insinga zifite umutekano: Witonze ushyireho insinga isaba guhinduranya imashini, urebe ko ihagaze neza kugirango ikumire ikintu cyose kidahwitse mugihe cyo guhinduranya.
2. Kabiri - reba igenamiterere kugirango wemeze ko bihuye nibisabwa.
3. Gushiraho Parameter no Kubika: Hindura gahunda ya mashini hamwe nibipimo nkenerwa kugirango uhindurwe. Uzigame ibipimo, urebe ko imashini ifite ubushobozi bwo kubika amaseti agera kuri 40 adasanzwe yo gukoresha ejo hazaza.
4.
5. Kwemeza ubuziranenge: Nyuma yo kuzuza birangiye, kora igenzura ryuzuye kugirango wemeze uburebure bwa diameter na diameter. Menya neza ko ibi bipimo biri mu kwihanganira ± 1, byubahiriza ibyo usabwa.
Davinci Machine imaze imyaka isaga 15 ikora ibikoresho byo gushyushya ibintu. Imashini yacu irwanya insinga ya coil ihinduranya igenzurwa neza kandi irashobora guhindurwa ukurikije ibyo abakiriya bakeneye. Turashobora kandi kohereza injeniyeri muruganda rwabakiriya kugirango bafashe mugushiraho ibikoresho no gutangiza, kugirango ibikoresho bikore neza muruganda.
