Foshan Davinci Technology Co., Ltd. ni umwe mu bakora inganda zizewe kandi zitanga imashini 18 zigabanya imashini zigabanya imashini mu Bushinwa, inashyigikira serivisi yihariye. Nyamuneka mwumve neza kugurisha 18-sitasiyo ya tubular ashyushya imashini igabanya ububiko hano kuva muruganda rwacu. Ushaka kugisha inama ibiciro, twandikire.

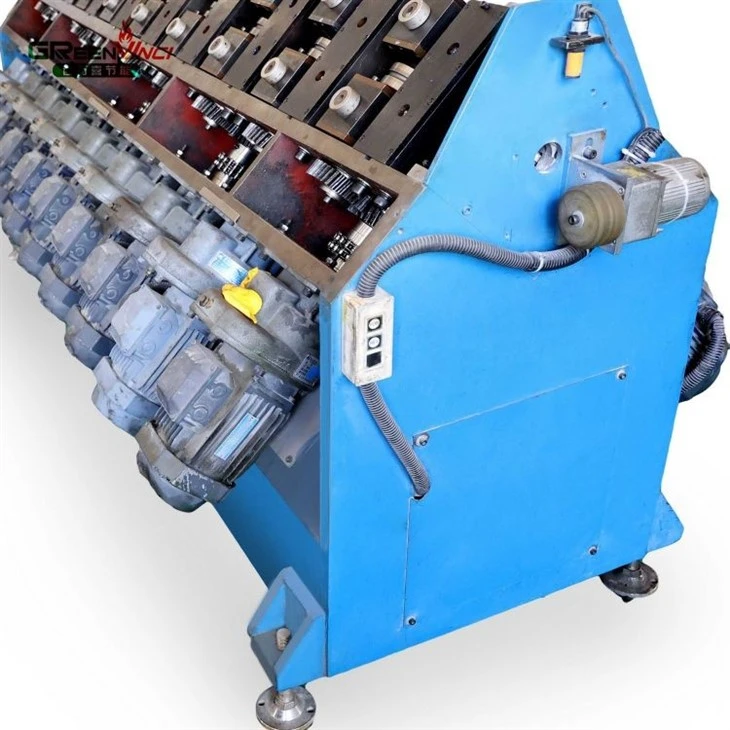

18-Sitasiyo ya Tubular Heater Imashini Igabanya
Ibicuruzwa Ibisobanuro & Ibisobanuro
Kumenyekanisha udushya twacu 18 - Imashini ya Tubular Heater Shrinking Machine - yagenewe guhindura ibintu byo gushyushya ibintu. Ibi bikoresho byateye imbere bigabanya icyarimwe diameter yinyuma yinyuma binyuze muburyo bunoze bwo kugabanuka, bikongerera cyane ubwinshi bwifu ya magnesium oxyde (MgO) imbere mubintu bishyushya. Igisubizo kiruta ubwinshi bwumuriro nimbaraga zo gukwirakwiza amashanyarazi. Imashini igaragaramo ikadiri ikomatanyirijwe hamwe, itanga umutekano udasanzwe ndetse no muburyo bukomeza bwihuta.
|
Icyitegererezo |
Amashanyarazi |
Ingano (rw * H) mm |
Ibiro (kg) |
|
GV001-12S |
Icyiciro cya gatatu (380V / 50Hz / 6kW) |
1200X800X1200 |
1800 kg |
|
GV001-16S |
Icyiciro cya gatatu (380V / 50Hz / 9kW) |
1600X800X1200 |
2500kg |
|
GV001-18S |
Icyiciro cya gatatu (380V / 50Hz / 12kW) |
2100X800X1200 |
2800kg |
Uburyo Bikora - Inzira yo Kugabanuka Iterambere
Imashini gakondo zigabanya imashini zikoresha sitasiyo nkeya, nka sitasiyo 8, bigatuma habaho ihinduka ryinshi kuri buri cyiciro. Ibi byoroshye kuganisha kumutwe kurukuta rwigitereko, gushushanya hejuru, hamwe numuyoboro utaringaniye cyangwa utari - nyuma yo kugabanuka, bikavamo ibicuruzwa bifite inenge. Igishushanyo mbonera cya sitasiyo 18 kigabanya igiteranyo cyo kugabanuka mubice 18 bito cyane byo guhindura ibintu, dukoresheje ibice 18 byizunguruka kugirango bigabanye buhoro buhoro diameter. Ibi bivamo umusaruro mwinshi hamwe nubwiza buhebuje bwigabanuka, kugabanya cyane ibiciro byumusaruro.
Incamake y'akazi:
** Kugaburira: ** Aluminium, icyuma, umuringa, cyangwa ibyuma bitagira umwanda byuzuyemo ifu mumashini yuzuza ifu hanyuma bigaburirwa kuri sitasiyo ya mbere na federasiyo yikora.
** Intambwe - na - Kwiyunvisha Intambwe: ** Umuyoboro unyura mu buryo bukurikiranye binyuze kuri joriji 18 zuzuye zuzuye, hamwe na buri jambo ryibumba rigabanya diameter kuri 0.1- 0.3 mm gusa.
** Ubucucike Bwiyongera: ** Mugihe diameter ya tube igenda igabanuka buhoro buhoro, ifu ya magnesium oxyde (MgO) ifata ifumbire imwe, byongera cyane ubucucike.
** Kurangiza no Gusohoka: ** Sitasiyo nkeya zanyuma zikora kurangiza, bivamo imiyoboro irangiye hamwe na diameter yo hanze ihoraho, hejuru yubuso, hamwe nubunini bwurukuta rumwe.
Inyungu yibanze ishingiye ku kuba buri déformasiyo ari nto cyane, bigatuma icyuma cyuma gihagije umwanya uhagije wo kongera gutondekanya, bityo bikuraho imihangayiko yimbere, bikarinda gucika, kandi bigatuma ubwinshi bwifu ya MgO bugabanuka.
Kugereranya: 8-Sitasiyo vs 12-Sitasiyo vs 18-Sitasiyo
|
Parameter |
8-Sitasiyo |
Sitasiyo |
Sitasiyo |
|
Kugabanuka cyane kuri buri ntambwe |
0.8-1.0 mm |
0,5-0,7 mm |
0,2–0.3 mm |
|
Ubuso bukabije (Ra) |
Ntibiri cyangwa bingana na 1,6 mm |
Ntibiri munsi cyangwa bingana na 0.8 mm |
Ntibiri cyangwa bingana na 0.4 mm |
|
Gutandukana k'urukuta |
± 0,10 mm |
± 0.08 mm |
± 0,05 mm |
|
Gutezimbere kwa MgO |
shingiro |
+10% |
+15~20% |
|
Uburebure bushobora gukoreshwa |
Mm 600 |
900 mm |
1200 mm |
|
Gusaba gusaba |
Imiyoboro migufi, ibyuma bishyushya byibanze |
Intego rusange |
Hejuru - iherezo, ndende - ibintu bishyushya ubuzima, kohereza ibicuruzwa - ibicuruzwa byo mu rwego |
Kuki uhitamo Imashini 18 yo Kugabanya Imashini
|
Ibyiza |
Ibisobanuro |
|
.05 0.05mm yuzuye neza |
18 {1 |
|
Ubuso bwa zeru |
Kugabanuka ntarengwa kuri buri ntambwe ihujwe na - gloss ipfa kubyara indorerwamo - hejuru yuzuye neza - nta poli ya kabiri ikenewe. |
|
Uburinganire bwurukuta rwazamutseho 30% + |
Inzira itera imbere irinda kurenza urugero - kurambura intambwe, bigatuma uburebure bwurukuta burenga 30% kuruta imashini zisanzwe. |
|
Ubucucike bwa MgO bwiyongereyeho 15-20% |
Gukomatanya kimwe bitezimbere ubushyuhe bwumuriro kandi byongera imbaraga zo gukumira (kugeza 100MΩ cyangwa zirenga). |
|
Bikwiranye ninyongera - tubes ndende |
Irashobora gutunganya ibyuma bishyushya birenga 1000mm hamwe no kunama hasi. |
|
Ikadiri ihuriweho |
Imashini yose yubatswe kumurongo wo hejuru - imbaraga, ikuraho resonance kumuvuduko mwinshi no kongera ubuzima bwa serivisi. |
Ibipimo by'ubugenzuzi
1. Kugenzura Amashusho
Umuyoboro ushyushya ugomba kuba udafite inenge igaragara cyangwa yangiritse. Ubuso ubwo aribwo bwose, ibishushanyo, cyangwa ubumuga bigomba kumenyekana, kandi umuyoboro ushyushya ugomba kwangwa niba inenge cyangwa ibyangiritse ari byinshi nyuma yuko tebes zikoreshwa mumashini ya 18-Sitasiyo ya Tubular Heater Shrinking Machine.
2. Kugenzura Ibipimo
Umuyoboro ushyushya ugomba gupimwa kugirango urebe ko wujuje ibipimo bisabwa. Uburebure, umurambararo, n'ubunini bw'igituba gishyushya bigomba kuba mubyihanganirwa byemewe, nkuko bigaragara mubicuruzwa byihariye.
3. Ibyiza byamashanyarazi
Ibikoresho byamashanyarazi yumuriro bigomba gupimwa kugirango byuzuze ibisabwa. Kurwanya umuyoboro ushushe bigomba kuba mubipimo byagenwe, kandi kurwanya insulasiyo nabyo bigomba kuba mubipimo byemewe.
4. Ubukomezi bwa kashe ya Shrinkage
Ubukomezi bwa kashe yo kugabanuka bugomba kugenzurwa kugirango harebwe neza. Ibisohoka byose biboneka mugihe cyikizamini cyumuvuduko bigomba gusanwa, kandi umuyoboro ushushe ugomba gusubirwamo.
5. Ikizamini cyimikorere
Imikorere ya tube ishyushya igomba kugeragezwa kugirango irebe ko ishobora kuzuza ibisabwa byumuceri wamashanyarazi. Umuvuduko wo gushyushya, kubika ubushyuhe, no gukoresha ingufu bigomba kuba mubipimo byagenwe bya 18-Sitasiyo ya Tubular Heater Shrinking Machine.
Imashini izunguruka irashobora gukoreshwa hamwe naImashini igaburira GV-014kandi irashobora kuba ifite ibikoresho byerekana ibimenyetso.
Ibirangantego: Imashini 18 zigabanya imashini igabanya imashini, Ubushinwa 18-sitasiyo ya tubular ashyushya imashini zigabanya imashini, abatanga isoko
